Compressed air piping for Qatar, engineered for zero leakage.
SecureAir's interlocking aluminium pipework delivers up to 36% more air at lower cost, installs in a fraction of the time, and is backed by a 15-year guarantee — supplied & installed across Qatar by Aamtron Group, an ICV-certified and Veriforce-approved contractor.
Five reasons engineers in Qatar specify SecureAir.
From the casting to the connection, every component is built for leak-free performance, faster installation and a longer service life.
Quality & durability
Corrosion-resistant, high-strength aluminium built to global standards.
Leak-free assurance
Impregnated castings tested for zero-loss, leak-proof performance.
Faster installation
Fully modular, cut-and-use system fitted in a fraction of the time.
Widest range
A complete system from 20 mm to 200 mm, plus every fitting and tool.
Trusted local support
350+ SKUs in local Qatar stock for quick delivery and lifetime expansion.
16 bar working
Patent-pending engineering in every connection.

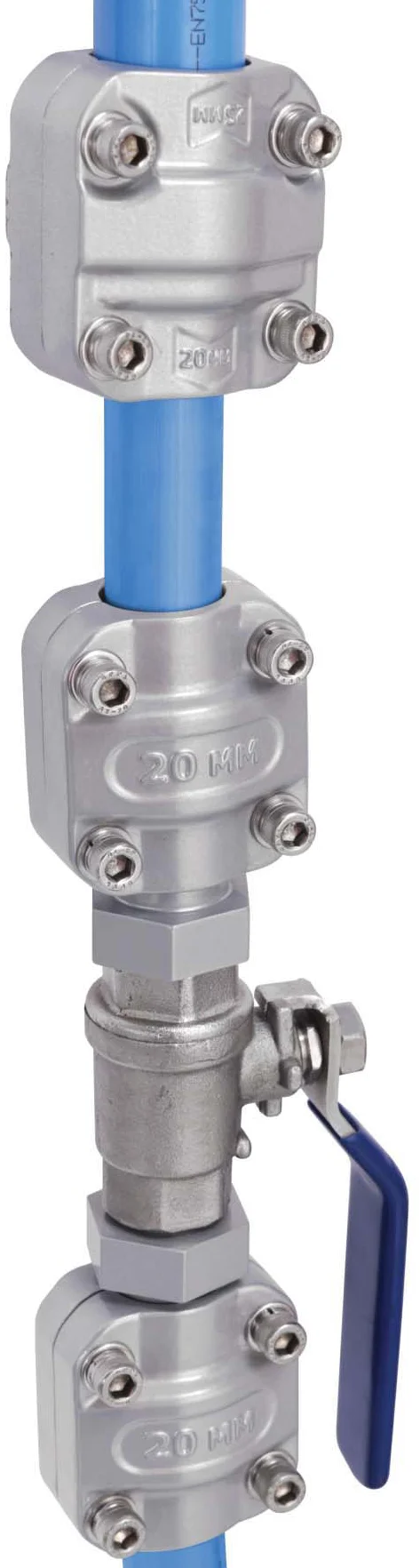

An interlocking male-and-female connector with casted teeth and recessed grooves seats perfectly every time — make any size from any size with a single connection.
Casted teeth & groove technology — recessed grooves in fittings for a better, repeatable fit. (Patent pending)
Bigger internal diameter, same size — up to 36% more air delivery for the same nominal bore.
SS 304 hardware & rubber-seal stoppers — superior casting, extrusion, machining, impregnation and coating.
Fully interchangeable — compatible with any system or make via a single thread adapter for future expansion.
More air through every bore.
A larger internal diameter at the same nominal size means more air delivery for the same cost — substantial savings on electricity and lower compressor maintenance.
Guaranteed15 years
| Pipe size | ID · SecureAir | ID · Market | Air · SecureAir | Air · Market | Improvement |
|---|---|---|---|---|---|
| DN20 | 20.00 | 17.10 | 31.40 | 22.95 | +36.79% |
| DN25 | 25.00 | 21.90 | 49.06 | 37.65 | +30.31% |
| DN40 | 40.00 | 36.50 | 125.60 | 104.58 | +20.10% |
| DN50 | 50.00 | 45.70 | 196.25 | 163.95 | +19.70% |
| DN63 | 63.00 | 58.90 | 311.57 | 272.33 | +14.41% |
Pipe ID & air delivery (CuM) — SecureAir vs prevailing market product.
Need full installation? Aamtron's ASME B31.3-certified piping contractors design, install & commission SecureAir across Qatar.
See installation servicesA complete piping system — pipe to tool.
Everything you need to design, build and expand a compressed-air network, all in one modular catalogue and held in stock in Qatar.
Aluminium Pipe

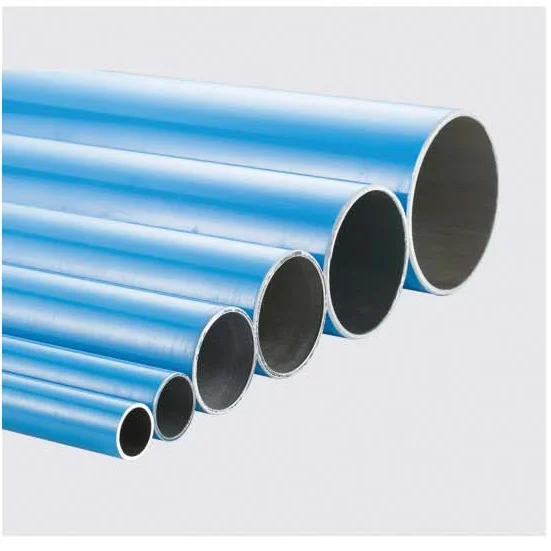

Aluminium Pipe (Blue RAL 5012)
Lengths of 2.9 m & 5.8 m. Also available in green, yellow, grey and red.
Colour-coded for every line
Identify air, vacuum, nitrogen and more at a glance.
Connectors & Fittings
Straight Connector
Reducer Connector
Elbow 90° Body
Elbow 45°
Equal Tee

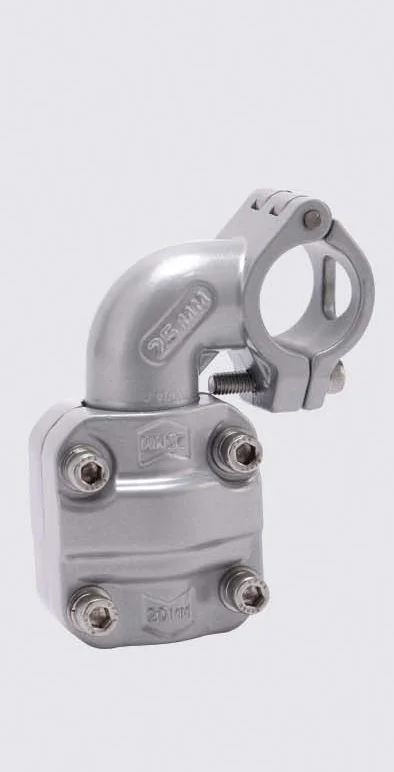

Quick Drop Assembly
Valves, Adaptors & Flanges

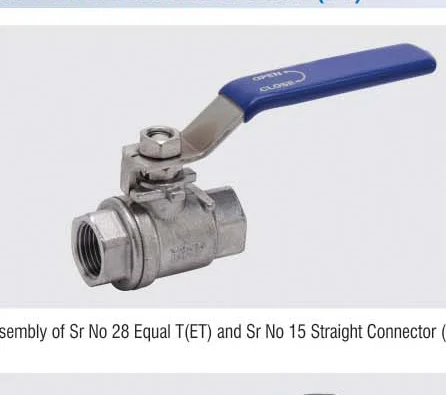

Ball Valve
Butterfly Valve
Male Threaded Adaptor
Flange Connector
Seals, Clips & Mounting
V Seal
Flexible Hose Assembly
Mounting & hardware
Tools & Accessories
Datasheets & sizing, at your fingertips.
Aluminium Pipe (AP) — dimensions
| Size · ID (mm) | OD (mm) | Lengths (m) |
|---|---|---|
| 20.00 | 22.70 | 2.9 · 5.8 |
| 25.00 | 27.80 | 2.9 · 5.8 |
| 40.00 | 43.50 | 2.9 · 5.8 |
| 50.00 | 53.90 | 2.9 · 5.8 |
| 63.00 | 67.70 | 2.9 · 5.8 |
| 80.00 | 84.90 | 2.9 · 5.8 |
| 100.00 | 105.30 | 2.9 · 5.8 |
| 150.00 | 155.70 | 2.9 · 5.8 |
| 200.00 | 206.30 | 2.9 · 5.8 |
Engineering standards

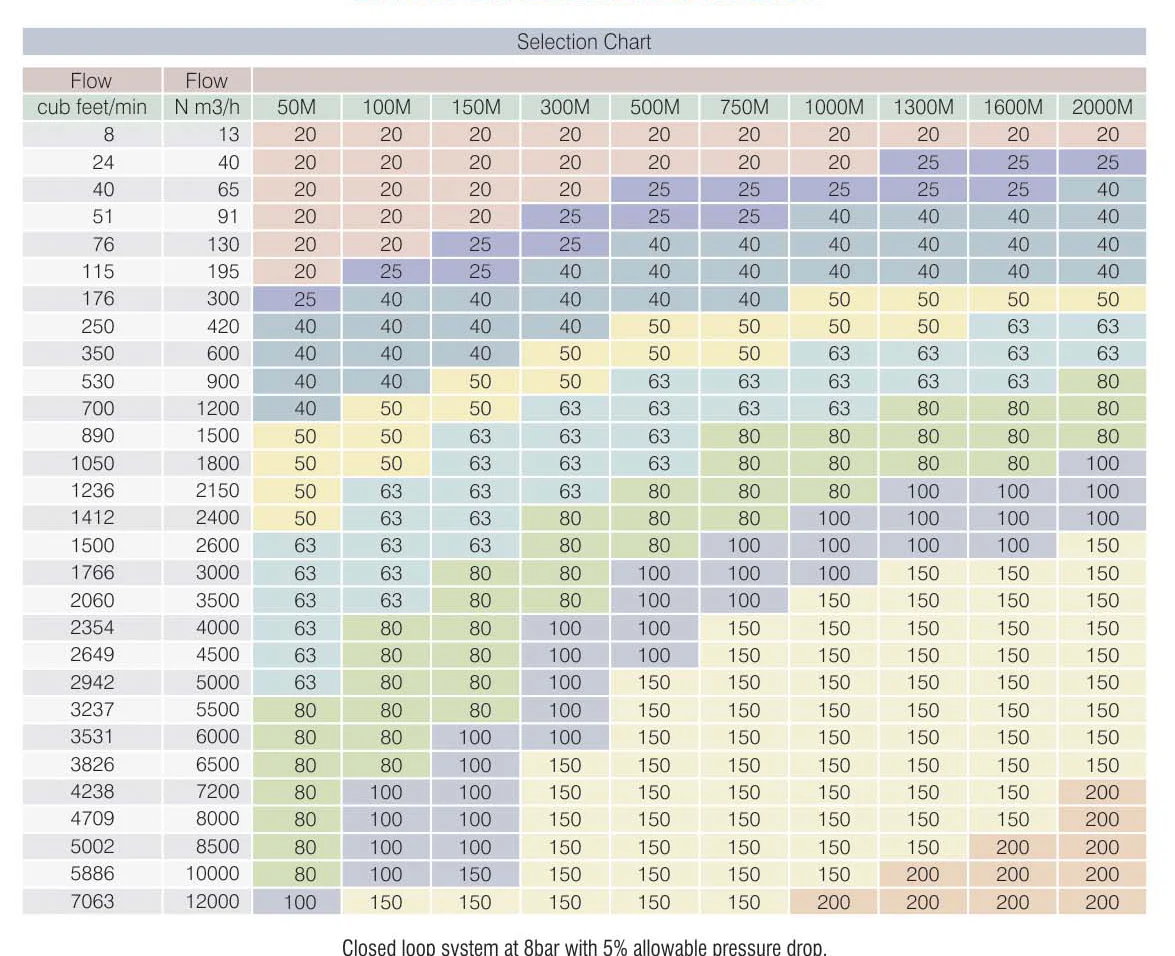

Diameter selection chart
Recommended bore (mm) by air flow & run length. Closed-loop system at 8 bar with 5% allowable pressure drop.
Request the full datasheet & brochureWherever compressed air flows in Qatar.
Automotive & Ancillaries
Pharmaceuticals
Food & Beverage
Textiles & Garments
General Manufacturing
Warehousing & Logistics
Built to global standards. Backed for 15 years.

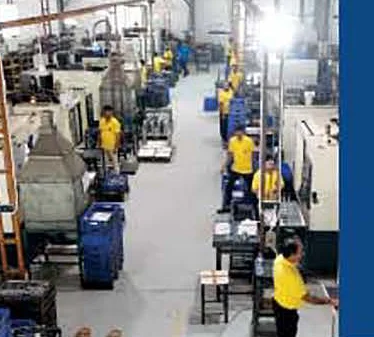

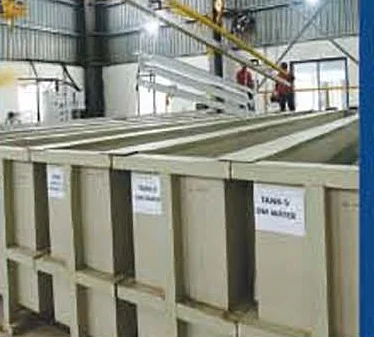

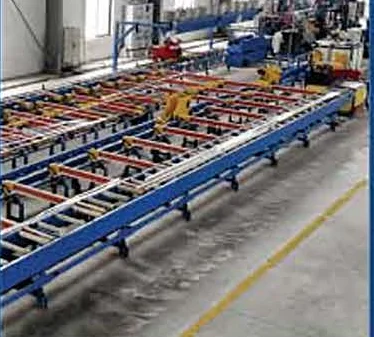

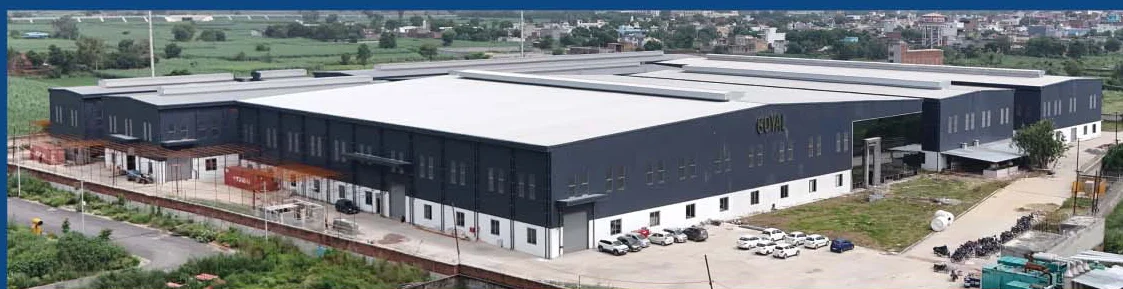

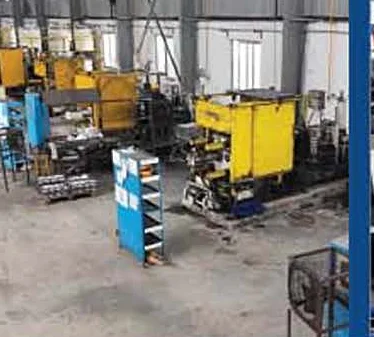

SecureAir is produced in an ISO 9001:2015 certified plant with cutting-edge casting, extrusion, machining and impregnation. In Qatar it is supplied and installed by Aamtron Group — an ICV (In-Country Value) certified and Veriforce-approved contractor, trusted for energy-sector and industrial procurement aligned with Qatar National Vision 2030.
Compressed air piping in Qatar — your questions
What is SecureAir compressed air piping?
SecureAir is a modular aluminium compressed-air piping system available from 20 mm to 200 mm. Its patent-pending interlocking connector with casted teeth and recessed grooves delivers up to 36% more airflow for the same nominal bore, with leak-free, corrosion-resistant performance and a 15-year warranty. It is supplied and installed across Qatar by Aamtron Group.
Who supplies and installs compressed air piping in Qatar?
Aamtron Group supplies and installs SecureAir aluminium compressed-air (airline) piping across Qatar — Doha, Mesaieed Industrial City, Ras Laffan, Al Wakrah and Al Khor. Aamtron is ISO 9001, 14001 and 45001 certified, ICV (In-Country Value) certified and Veriforce-approved, and holds 350+ SKUs in local stock for fast delivery.
Why choose aluminium air pipe over steel or GI?
Aluminium air pipe is corrosion-resistant, lightweight and delivers clean, dry air with a smooth bore that lowers pressure drop. SecureAir's larger internal diameter at the same nominal size provides up to 36% more air delivery, cutting electricity and compressor maintenance costs compared with galvanised iron (GI) or steel.
Is Aamtron Group ICV certified and Veriforce approved?
Yes. Aamtron Group holds a valid Qatar In-Country Value (ICV) certificate, which provides a competitive advantage in energy-sector and government tenders under the Tawteen programme aligned with Qatar National Vision 2030. Aamtron is also a Veriforce-approved contractor, meeting recognised supply-chain safety and compliance standards.
What pressure and pipe sizes does SecureAir support?
SecureAir operates at up to 16 bar working pressure (30 bar test pressure) and is available in nominal sizes from DN20 (20 mm) to DN200 (200 mm), with a full range of connectors, valves, flanges, seals and tools.
Does SecureAir piping come with a warranty?
Yes. SecureAir aluminium compressed-air piping is backed by a 15-year warranty. The system is manufactured to ASME B31.1/B31.3 and PED 2014/68/EU standards in an ISO 9001:2015 certified plant.
